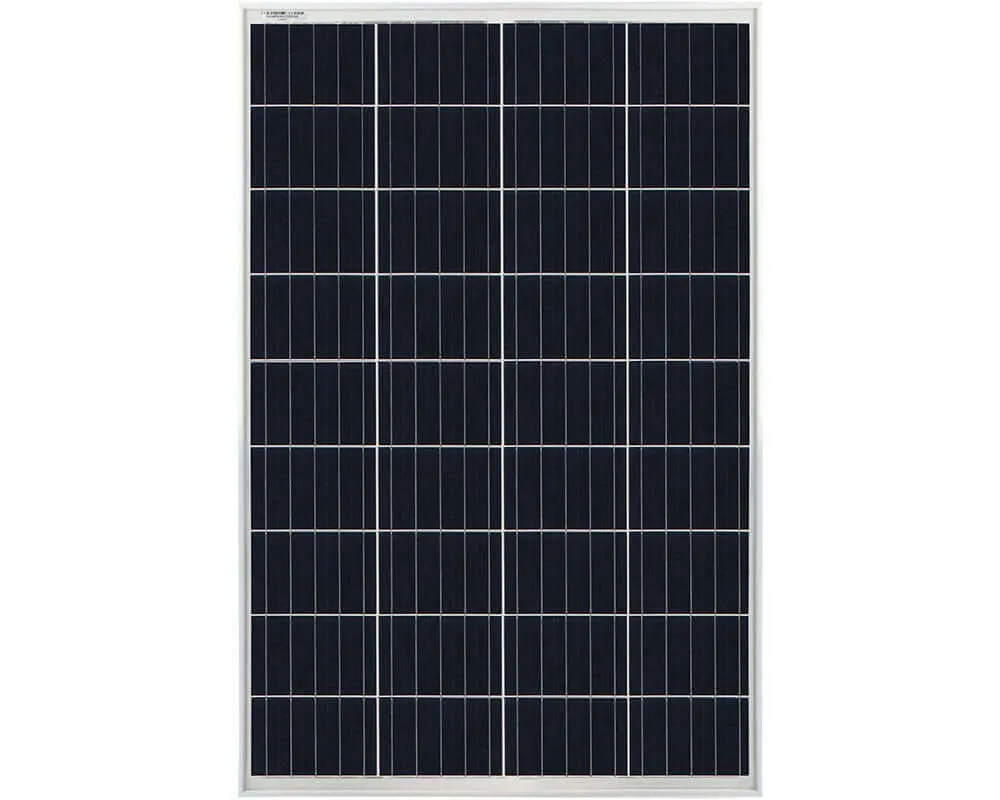

Our 100W Poly solar panels are manufactured with high efficiency A-grade Trinasolar® cells.

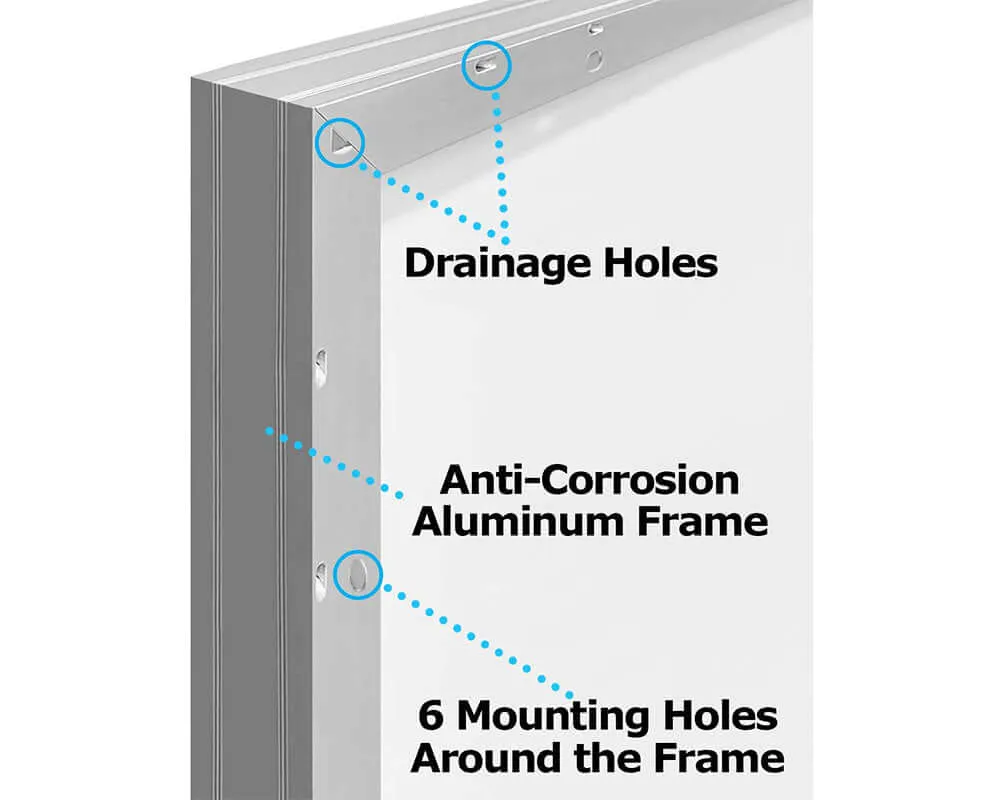

The low reflective properties of the 3.2mm safety/tempered glass front allows for maximum light absorption, while the low-iron content of the glass gives it more transparency than other types of glass for maximum solar production. A corrosion-resistant anodized aluminium frame surrounding the solar panel adds strength and allows for easy mounting.

Our solar panels are backed with a 10-Year Warranty, are built to last and have been made to comply with the following international test standards IEC61215, IEC61730-1 and IEC61730-2 for use with AC modules and a Class-C fire rating as per AS/NZS5033:2014. They are designed to retain 80% of the original power output after 25 years of usage.

Specifications for 100W poly-crystalline Solar Panel:

Maximum Power (Pmax) - 100W
Maximum Power Voltage (Vmpp) - 18.3V
Maximum Power Current (Impp) - 5.56A
Open Circuit Voltage (Voc) - 21.8V
Short Circuit Current (Isc) - 6.06A

Power Tolerance - 3%
Cell Efficiency: 20.60%
Module Efficiency STC - 18.40%
Operating Temperature Range - -40C - 85C
Number of Cells: 36
Cell Type:Trinasolar®
Maximum System Voltage - 1000V
Dimensions : 1005x670mm
Weight: 8kgs

Temperature Coefficient of Pmax : -0.435%/C
Temperature Coefficient of Voc : -0.35%/C
Temperature Coefficient of Isc : 0.043%/C
Normal Operating Cell Temperature : 47C /- 2C

Wind Load: 2400Pascal
Snow Load: 5400Pascal
Warranty: 10Years

Actual Size:

1005x670x30mm

Application Class: Class A
Fire Rating: Class C

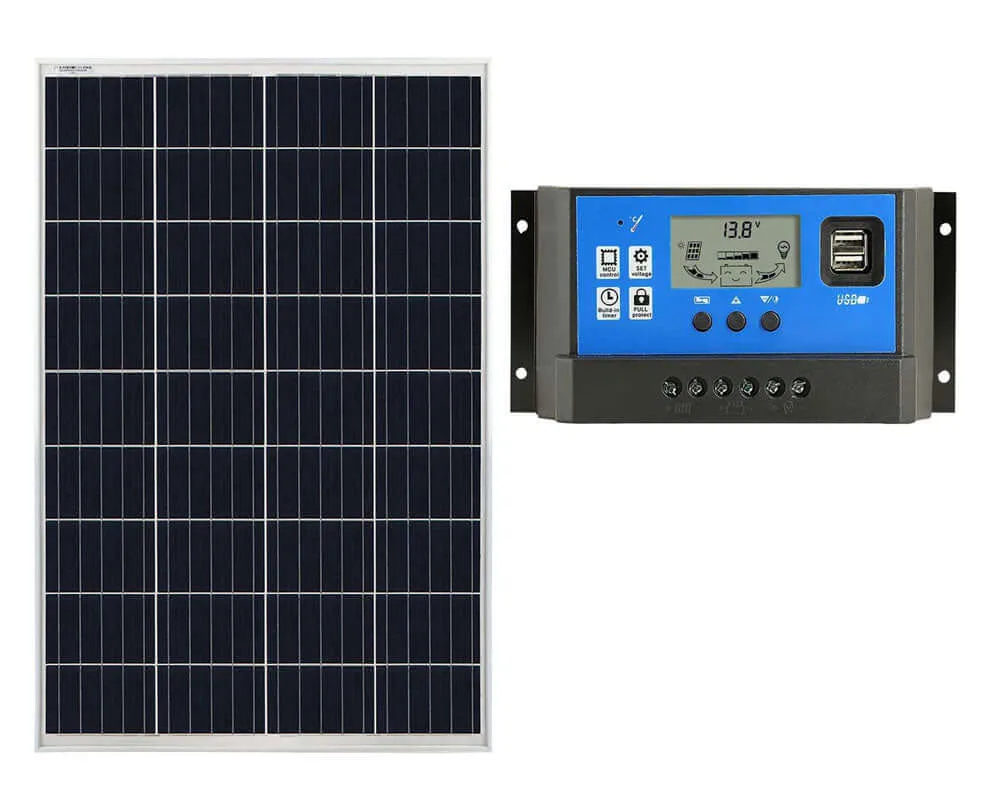

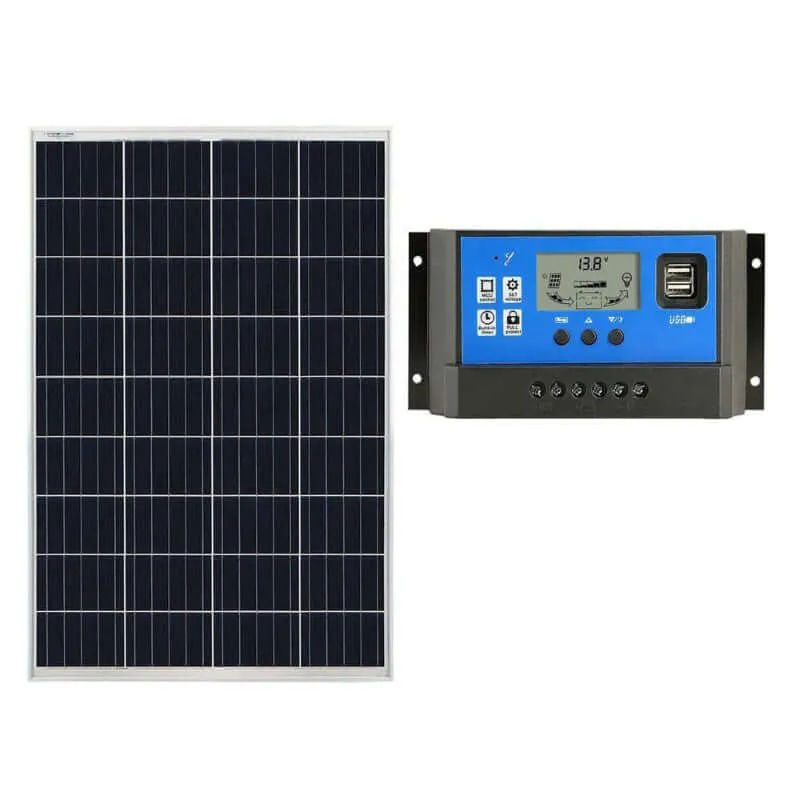

Package:
1X 100W Poly solar panel
1X 50A Solar Charge Controller
