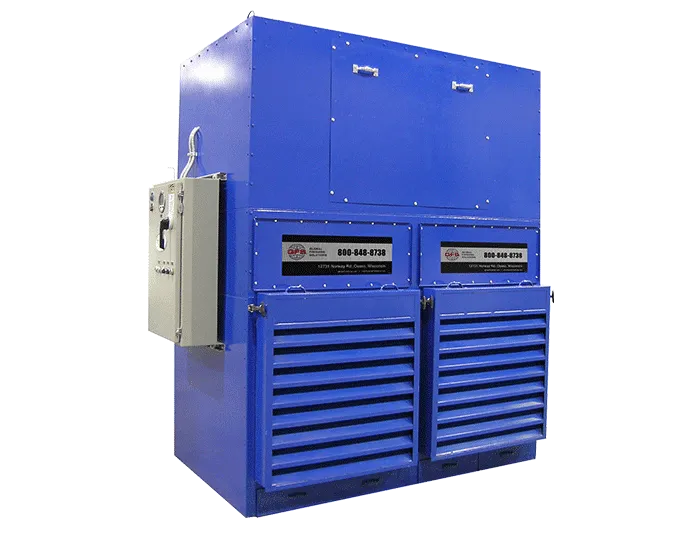

Global Finishing Solutions’ (GFS) Dust Collection Modules are an effective means of containing dust produced from sanding and grinding applications. With the help of a direct drive fan and motor, air is pulled into the module and through a cartridge filtration system. Dust is filtered, and clean air is exhausted back into the plant.

FEATURES

• Factory assembled
• High-efficiency cartridge filtration system
• Heavy-duty construction
• 12-gauge painted mild steel
• Direct-drive blower and motor, 208, 230/460V, 60-Hz, 3 PH
• Compressed air requirements: clean filtered dry air, 6 CFM at 80 to 100 psi
• Complies with all federal, OSHA and NFPA regulations
• Choose door type:
  • Open Louver for dust and sanding
  • Spark Arrestor for all grinding applications

OPTIONS

The following options can be added to a Dust Collection Module:

• Deluxe control panel
• HEPA filtration
  • Obtains 99.9% efficiency at 0.3 micron particle size
  • Meets requirements for safe hexavalent chromium arrestance
  • Includes a magnahelic gauge for monitoring HEPA filtration performance
