Product Details
＋

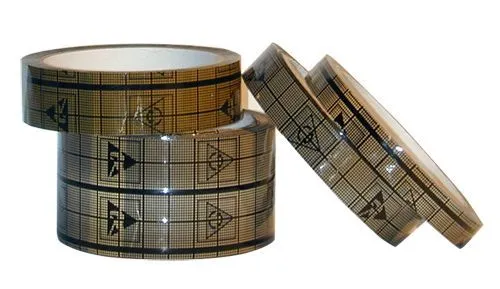

The three-layer tape provides non-sparking surfaces on both the inside and the outside. A conductive grid is buried between two static dissipating copolymer substrates that will not shed, crack, chip or rub off.
Meets or exceeds requirements of ANSI ESD-S20.20.
Applications
- Use ESD symbols for ESD awareness
- Sealing ESD packaging/containers
- For applications requiring EMI Shielding
- Using a grounded tape dispenser, voltage generated by unrolling will effectively be reduced to zero.
- Secure (bundle) IC DIP tubes
- Guardian Grid Tape are available in different sizes: 3" core - 1/2", 3/4", 1" and 2" width by 118' (36m) in length.
Specifications
- Thickness: 1.9 Mils (0.049mm)
- Adhesive: Acrylic based
- Grid Material: Oriented polypropylene
- Conductive Grid Layer: 103 to 104Ohms/Sq (ASTM D-257)
- Copolymer Resistivity: ≤ 109
- Maximum Temperature: 60°C (140°F)
- Core Size: 74mm (3")
- Electricals: < 1.0E 12 (Top), < 1.0E 9 (Tacky side)
- Tribo-Charging: < 100 volts (Top), < 100 volts (Tacky side)
