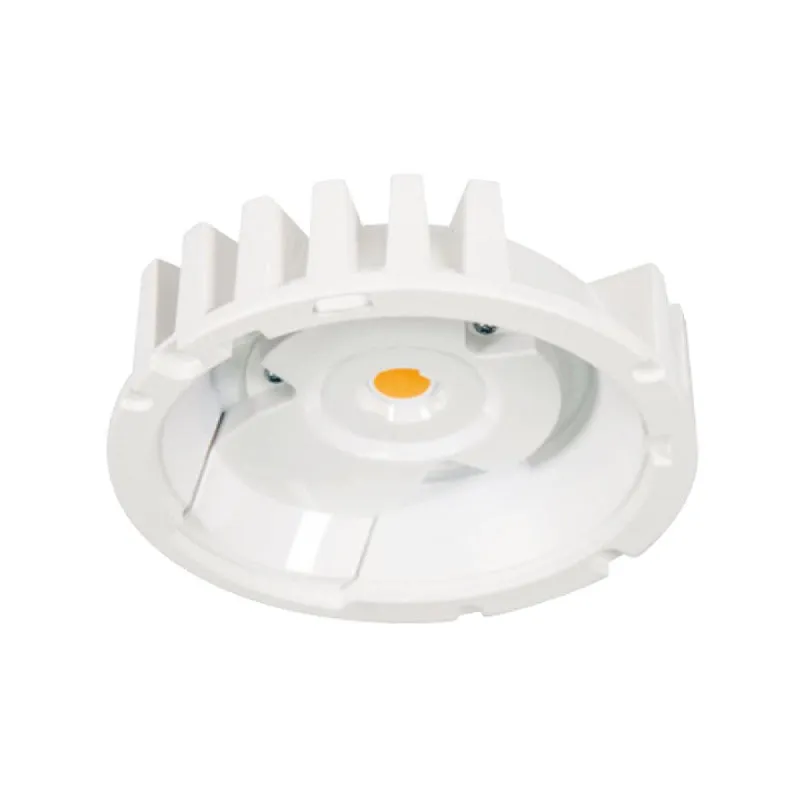

The HC6 LED modules are available in a discrete selection of correlated color temperatures (CCT). The user can choose color temperatures 2700K, 3000K, 3500K and 4000K in 80 or 90 CRI.

Features:

• Housing and Trim sold separately
• Complete installation = Housing LED Module Trim
• Size: 6"
• Color Temperature: 2700K, 3000K, 3500K, 4000K
• Lumen: 1000, 1500 and 2000 lumens (nominal)
• CRI: 90
• Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
• Available in 80 or 90 CRI minimum, accuracy within 3 SDCM provides color uniformity
• Passive thermal management achieves L70 at 50,000 hours in IC and non IC applications
• Integral diffuse lens provides visual shielding
• Integral connector allows quick connection to housing flex
• use with HC610*, HC615*, HC620* housings
