Features:

On Flame Failure the Light Sensitive Cadmium Sulfide Cell, in Conjunction with Flame Sensing Circuitry, Causes the Protectorelay Control to Shutdown the Main Oil Burner
Glass-To-Metal Hermetic Seal in Plug-In Cell Prevents Deterioration by Humidity, Soot or Oil Fumes
Replaceable Cad Cell

Specifications:

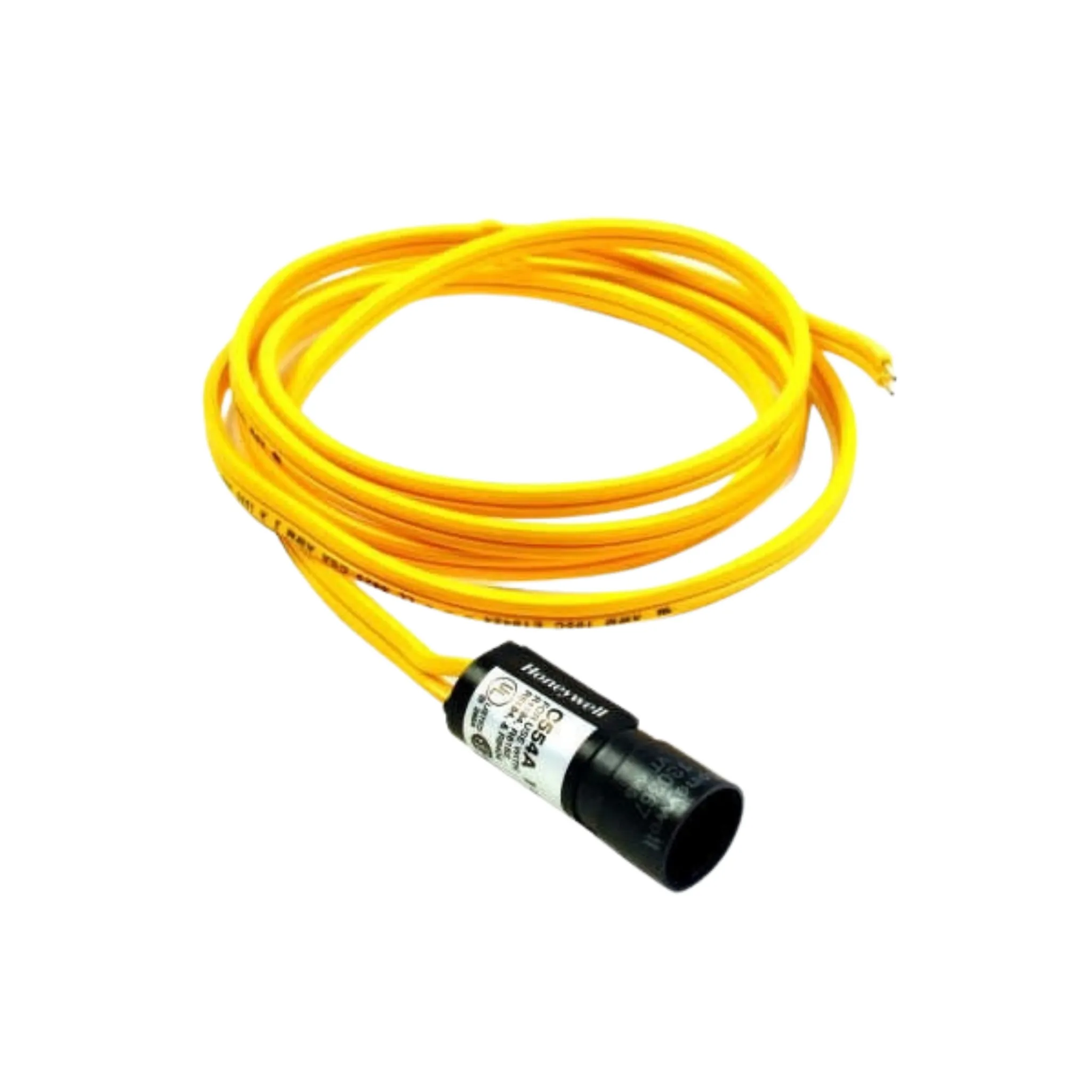

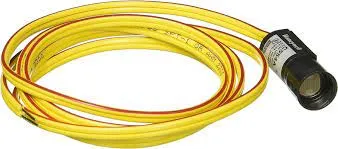

Manufacturer: Honeywell
Manufacturer Part Number: C554A1794
Product Type: Flame Detector
Electrical Connection Type: NEC Class 1 Lead Wire
Mounting: R-Bracket
Operating Temperature: 140 Degrees F
Sensitivity: 12mA @ 2 Ft. Candle
Lead Length: 60”
Dimensions: 13” x 6"
Weight: 9.19 lb.
Includes: E Mounting Bracket, Fuel Line Adapter
Used For: R4166/R4184/R8182/R8184/R8185/R8404/R8991/R7997/R7184/R7284
