Features:

• Guaranteed performance to 43.5 GHz with Extended K™ ports
• High output power allows measurement of high attenuation devices
• Advanced time domain option provides tools for signal integrity analysis
• Wide dynamic range enables measurement of very low reflection artifacts
• Excellent corrected directivity minimizes measurement uncertainty
• SmartCal™ auto calibration unit reduces calibration and setup time
• Time domain with time gating option grants easier and faster fault identification
• Modern LAN interface for remote control is faster than GPIB
• A common GUI and SCPI interface within the ShockLine family
• Bias tee option simplifies test setups where the DUT needs DC biasing
• Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
• E-Band VNA
• Extended frequency range covering E-band and major parts of V band
• Fully assembled test system eliminates setup errors and increases reliability
• Tethered modules connect directly to the DUT increasing measurement stability

Applications:

Mobile

• UE – micro coaxial RF connectors
• UE – Antennas, switches, diplexers, UE Front End Modules (FEM)
• 5G network components

Automotive

• RF (FAKRA) connectors
• Driver assistance radar

General Purpose

• Passive Device Testing
• Connectors
• Cables
• Electromechanical
• Switches
• Attenuators
• Couplers
• Filters
• Isolators
• Circulators
• Phase shifters
• Radar connectors
• Near-field and far-field antenna measurements

System Integration Applications

• System calibration
• Path-loss characterization
• General s-parameter and time domain measurements

Simple Active Applications

• Amplifier characterization

Wireless Power Transfer Applications

• KQ product
• Maximum efficiency

Optical to Electrical, Electrical to Optical, and Optical to Optical Applications

• Photo receiver
• Laser modulator
• Optical transceiver

Specifications:

• 92 GHz

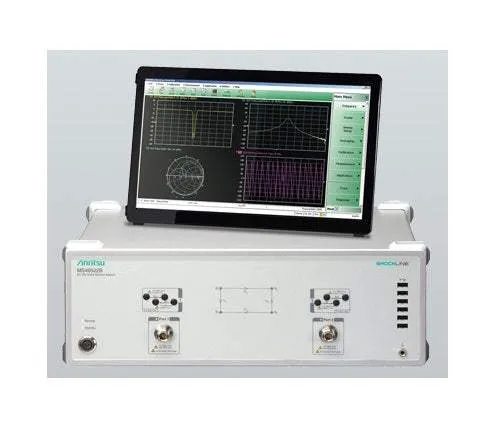

The ShockLine™ MS46522B is a 2-port performance vector network analyzers. Delivering an unprecedented level of value and performance, this series lowers the cost-of-test and speeds time-to-market in numerous testing applications up to 92 GHz, including: manufacturing and verifying mobile network equipment and devices for 5G mmWave applications; automotive cables; high-speed data interconnects; and system integration components.
