| Product Attribute | Attribute Value |
|---|---|
| Configuration | Enclosed |
| Family Name | SITOP Power Family |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 4.5 A |
| Output Power | 54 W |
| Output Voltage | 12 VDC |
| Primary Type | AC-DC |
| Series | |
| Type | Industrial |
| UPC Code | 040892600247 |
| Voltage, Input Range | 85-264 VAC |
Overview

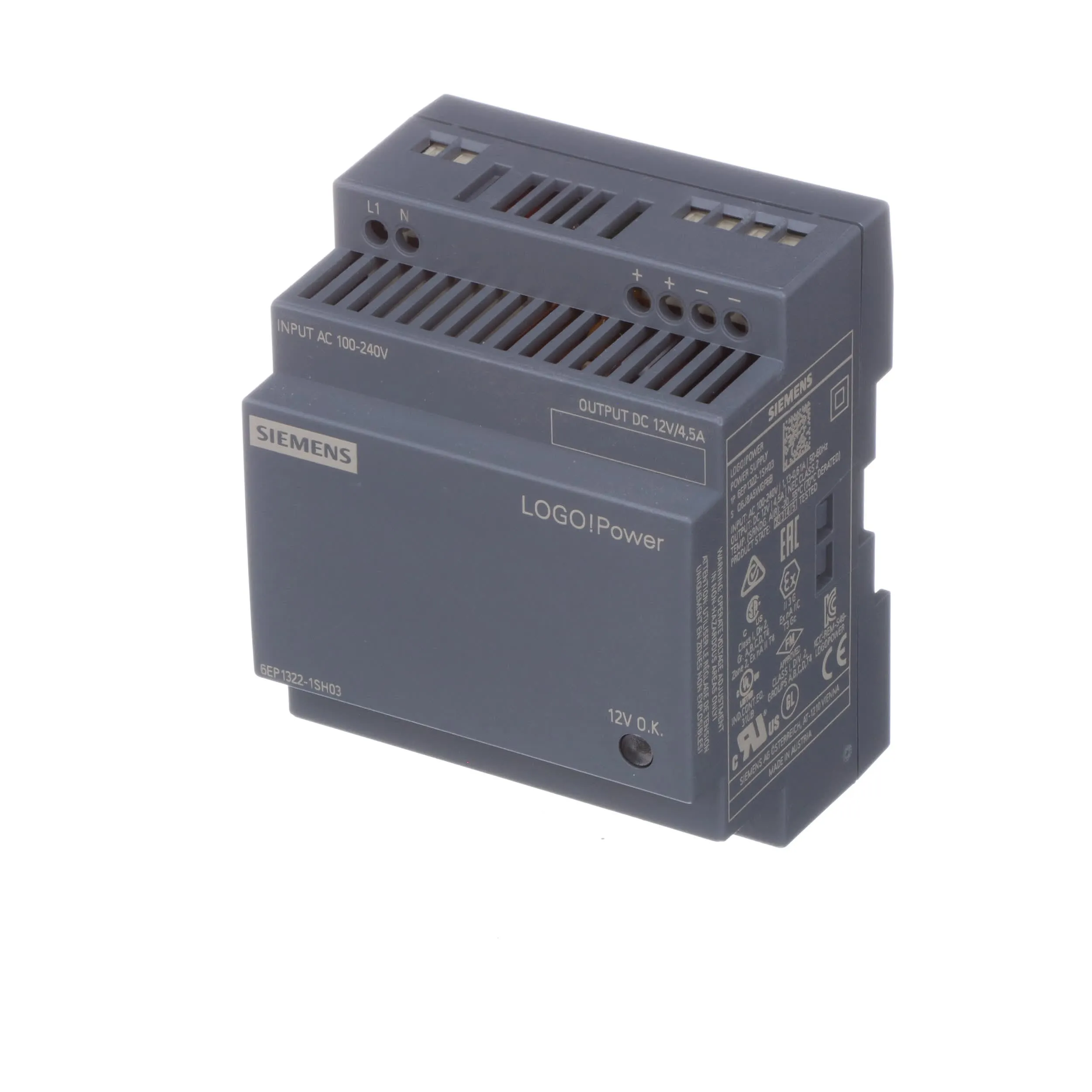

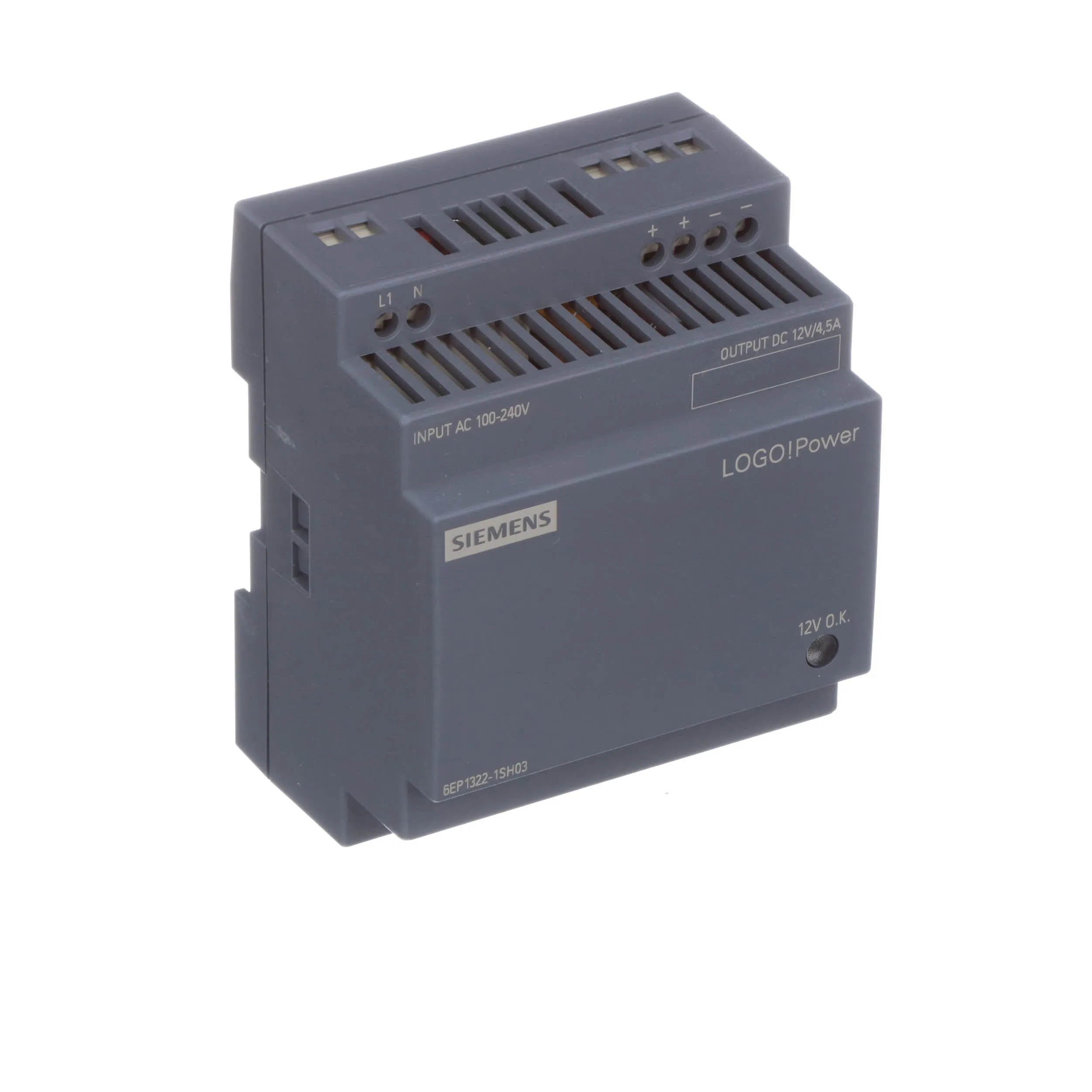

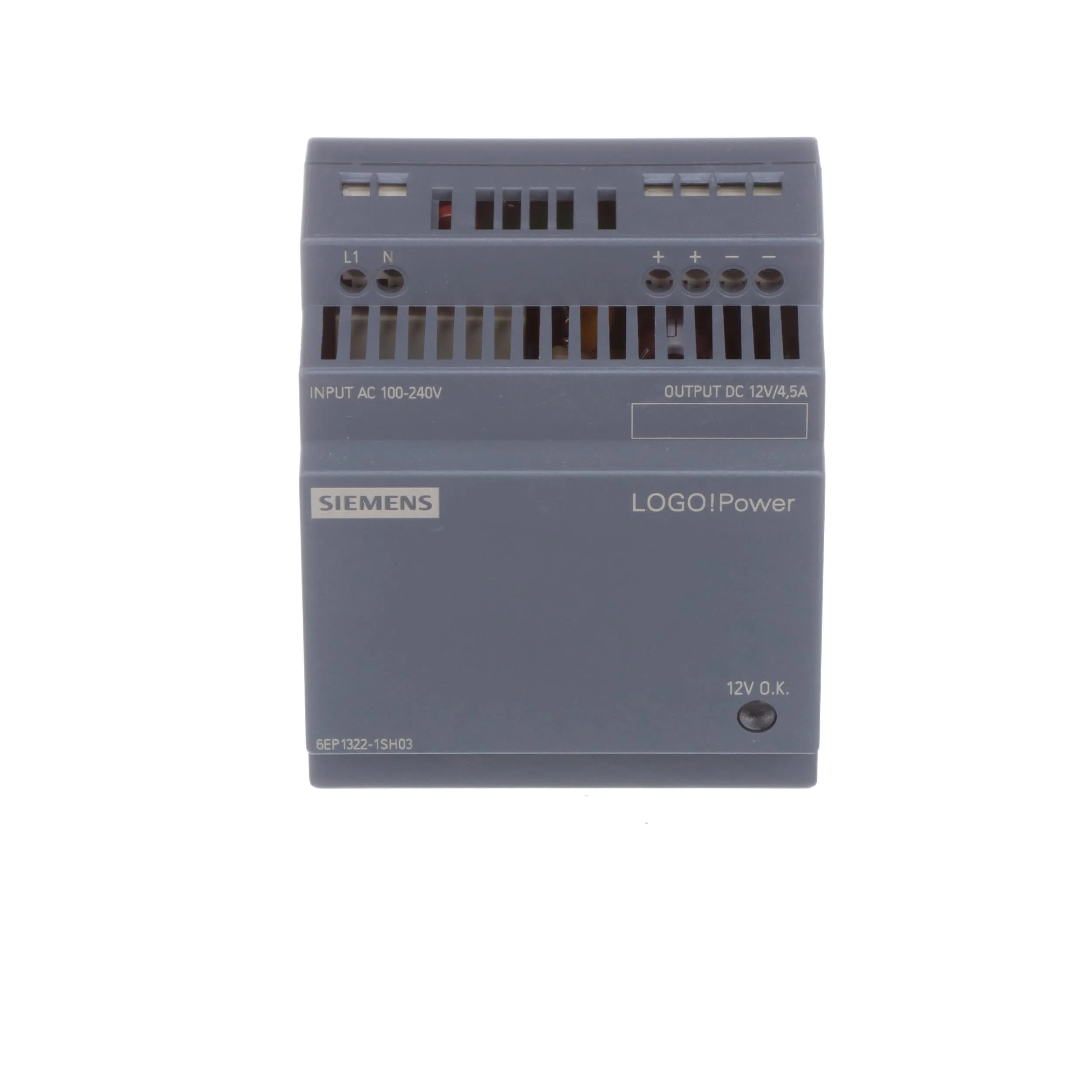

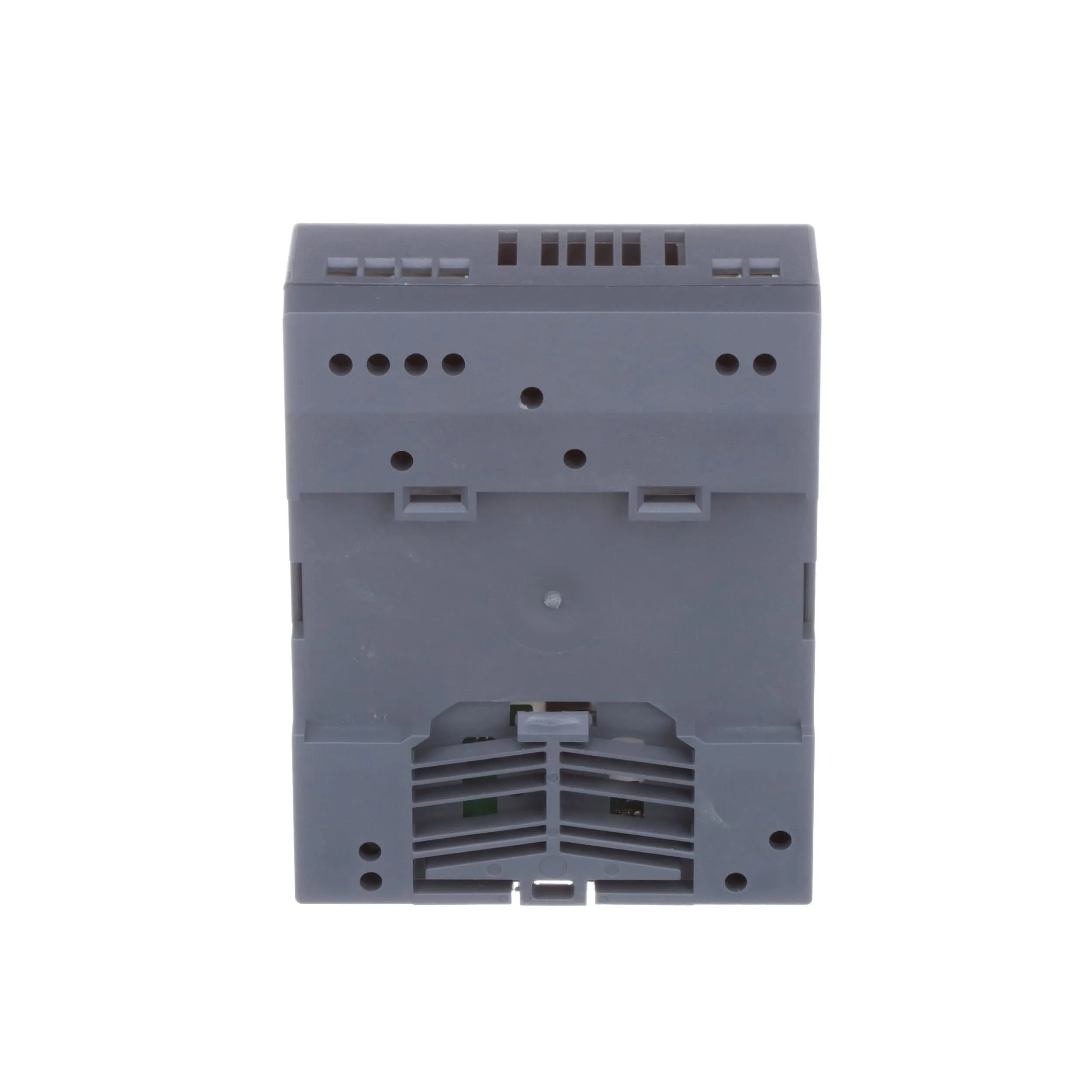

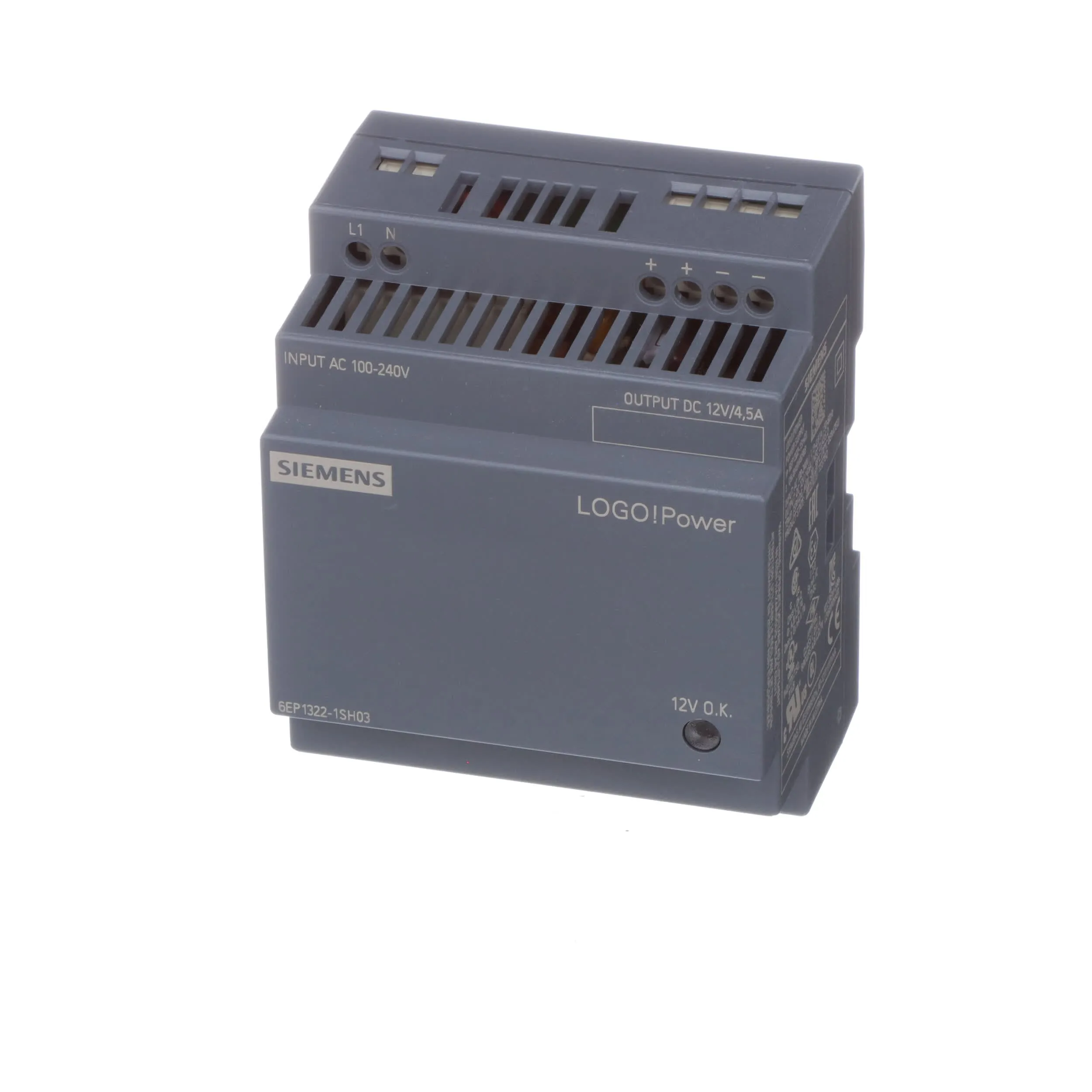

Siemens LOGO!Power Series — SITOP Flat Power Supply for Distribution Boards:
The fourth generation of world-proven miniature power supply units now offers even more power in an even smaller design. Each performance variant has been narrowed by a modular width of 18 mm, setting a new standard in its class. At the same time, the new LOGO!Power family also offers a host of additional functionalities, such as flexible mounting, a current monitor, improved energy efficiency and an extended temperature range. For supplying small 12 V and 24 V loads, the product range has been expanded to include two compact units with a width of only 18 mm.
Thanks to the flat, stepped profile design they share with LOGO! 8 modules, these reliable miniature power supplies are ideally suited for low installation depths, such as in distribution boards. The narrow width of the innovative switched-mode power supplies means they only require a small installation area, with wall mounting allowing installation in practically any position. The fourth generation of world-proven miniature power supply units now offers even more power in an even smaller design. Each performance variant has been narrowed by a modular width of 18 mm, setting a new standard in its class. At the same time, the new LOGO!Power family also offers a host of additional functionalities, such as flexible mounting, a current monitor, improved energy efficiency and an extended temperature range. For supplying small 12 V and 24 V loads, the product range has been expanded to include two compact units with a width of only 18 mm.
Features:
