SVBONY WIFI Astronomy Camera / IMX662

Sony IMX662 color CMOS sensor
2.4G WiFi Technology, it can be connected to 4 devices at the same time
Built-in 2400mah lithium Battery & a 32GB TF ard
SvbonyAstro Software Application
Removable UV/IR CUT Filter Design
10M Effective Transmission Sensing Distance
Comes with 1.25″/CS/C Adapter

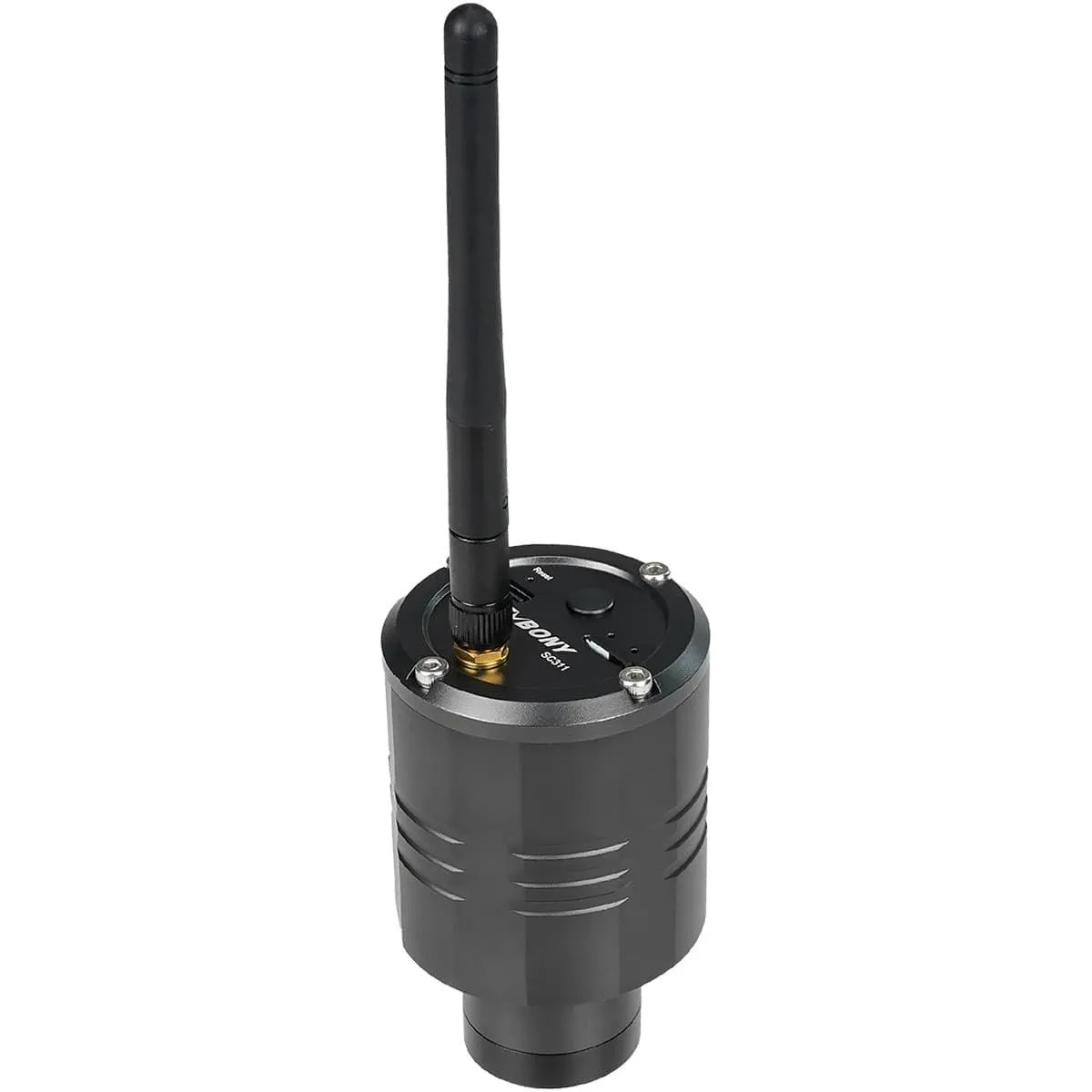

The SVBONY SC311 is the first wifi camera we developed for astrophotography. It uses Sony IMX662 color CMOS chip and 2.4G wifi technology to enjoy the fun of sharing with multiple people and a clearer visual experience.

IMX662 Color CMOS Sensor

The SC311 is designed with Sony IMX662 color CMOS sensor, which uses advanced STARVIS 2 technology. It has the characteristics of no amp glow and very low readout noise, higher sensitivity to red and near infrared(NIR) light. It is especially suitable for EAA Astronomy.

WIFI Technology

2.4G WiFi technology let you can use 4 devices at the same time and share the fun of astronomy with your friends. Support Android and Apple systems, you can download them in the software store.

10M WIFI Distance

10M effective transmission sensing distance allows you to get rid of the shackles of the data cable, it is easier to realize the fun of astronomy observation outdoors.

4h Standby Time

Built-in 2400mah lithium battery, it can support about 4 hours of continuous work, allowing you to have more time to focus on observations.

SvbonyAstro Software

Connect to SvbonyAstro, a software application designed by SVBONY. You can do observation on your phone or pad and save them to the SC311 built-in TF card, and then easily share share your fun through social media with just one click.

Removable Protective Glass

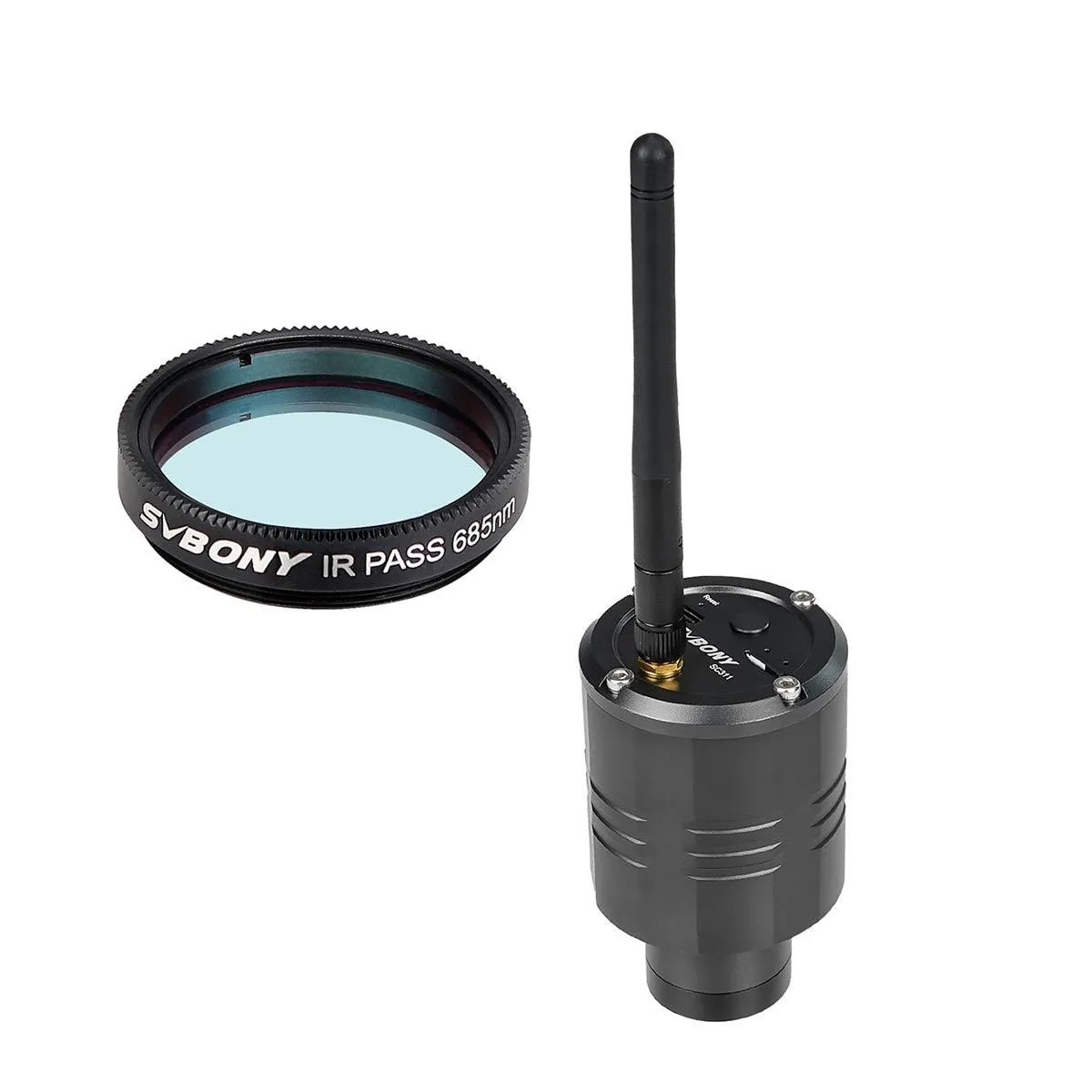

The removable protective glass(UV/IR CUT filter) design allows you to experience it in more ways, but it should be noted that you should try not to disassemble it to avoid dust entering and affecting the later shooting results. This removable UV/IR CUT filter design high transmittance of more than 96% in the visible light range of 400-700nm. If you want to shoot infrared or ultraviolet band, try to use the IR685, IR850 filter to achieve different shooting experience.

Built-in TF Card

Built-in 32GB TF card, you can save photos or video files to the TF card, it will not occupy the storage space of the mobile device.

Compatible With MK105

Used with MK105, you should get good results in planetary photography, solar and lunar photography.

Technical Specifications

Model	SC311
Sensor Model	SONY IMX662
Total Pixels	2.1 Mega Pixels
Diagonal	6.44mm
Max Resolution	1920×1080
Pixel Size	2.9μm X 2.9μm
Chip Size	5.6mm×3.2mm
Exposure Range	0.02ms-5s
QE Peak	≈91%
ADC	12 bit
Adapter	1.25″/CS/C
Removable Protective Glass	UV/IR CUT
Back Focal Length	12.5mm
Wifi module	2.4G,150Mbps
Storage	TF Card, Max support 256G, come with 32G
USB Type	Type-C
Build-In Battery	2400 mAh
Video	support
Photograph	support
Plan to take pictures	support
Working Humidity	20%RH-80%RH
Storage Humidity	20%RH-95%RH
Operating Temperature	-10°C~50°C
Storage Temperature	-20°C~60°C
Net Weight	372g
Total Weight	400g
