Description:

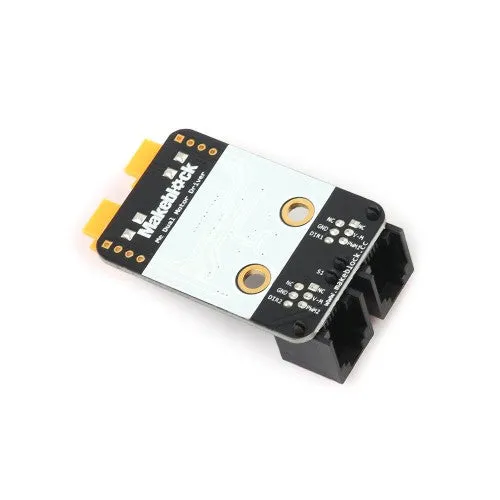

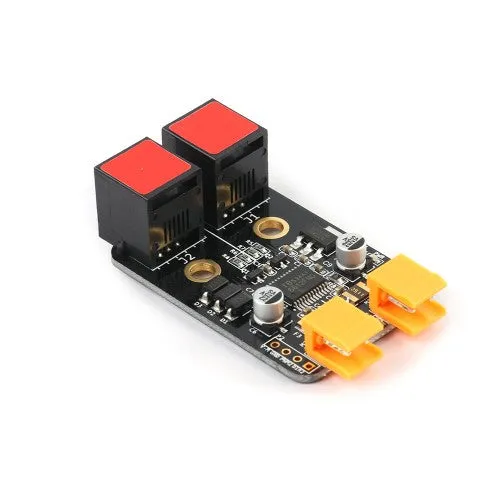

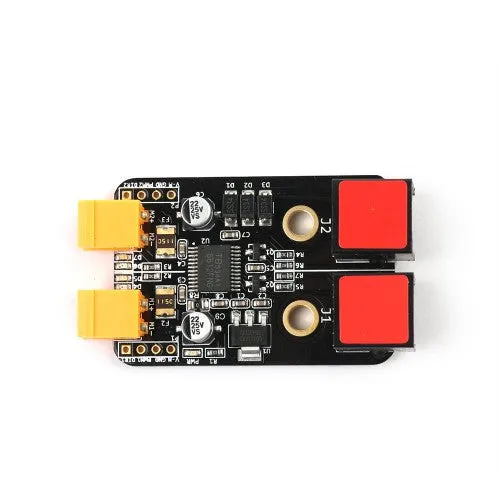

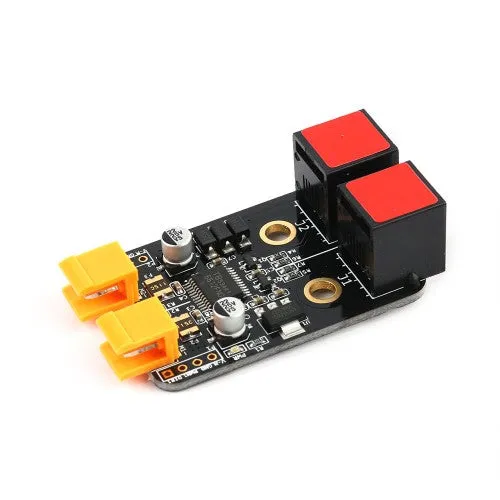

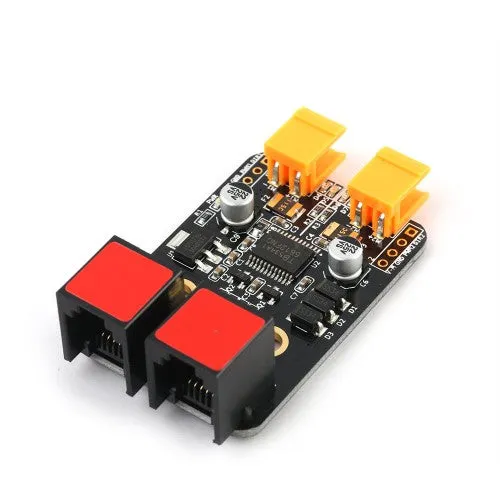

Makeblock Me Dual DC Motor Driver is the improvement version of Me Motor Driver V2.1. With on board RJ25 ports, you can drive two DC motors at a constant current of 1A (2A peak). The motor driver IC on the board is TB6612, TB6612 is a high efficiency MOSFET driver, with low heat dissipation. Over current protection included to stop the driver IC burned out. This is the DC Motor Driver,

Features:

• TB6612PNG motor driver IC with High efficient MOSFET-based H-bridges
• Comes with Arduino library for easy programming
• 6 V to 12 V motor supply range
• 1 A maximum continuous current per motor (2 A peak)
• Over-current protection
• Easy wiring with RJ25 interface
• Labeled with red tag and compatible with Me BaseShield or Me Baseboard
• 2.54mm breakout pins for connecting with jumper wires

General specifications:

• Motor channels: 2
• Minimum operating voltage: 6 V
• Maximum operating voltage: 12 V
• Continuous output current per channel: 1 A
• Peak output current per channel: 2 A
